VarioSole Hanger bolt M12 x 250 Wood Substructure - Renusol

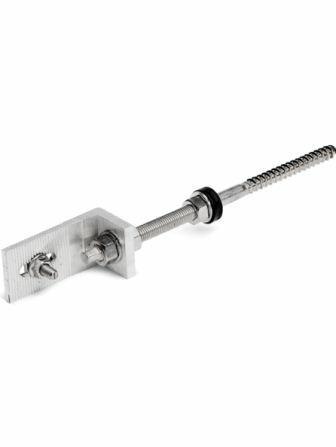

VarioSole Hanger bolt M12 x 250 Wood Substructure

VarioSole Hanger bolt M12 x 250 Wood Substructure
Renusol

Part No: REN-860007

Technical Data

  • Material: stainless steel A2
  • Diameter of sealing collar: 25 mm
  • Sealing integrated: Yes
  • Thread Diameter: M12; 11.0mm
  • Thread: Partial thread
  • Thread applicable for: Wood; Metric
  • Thread length: 100.0 mm
  • Head of screw: Hexagon
  • Minimum screw penetration: 60 mm
  • Screw tip: Wood top
  • Space for adjustment vertical: 91.00 mm
  • Assembly without pre-drilling: 8.4 mm
  • Compatible product groups: VarioSole SE; TriSole
  • Material: Stainless steel, Aluminum

Other Contents:

  • 1 x 900002 Hanger bolt M12 x 250
  • 1 x 900007 Hammerhead bolt M8x25
  • 1 x 900001 Hexag. nut DIN6923 - M8 A2-70 with FL & SZ
  • 1 x 400012 Standard Bracket M12

Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so will void the warranty of the mounting system.
